德国安诺尼aaronia SPECTRAN V6实时频谱仪如果通过matlab使...
德国安诺尼aaronia SPECTRAN V6实时频谱仪如果通过matlab使用
由于RTSA-Suite PRO软件提供了一个强大的支持 JSON 数据格式的HTTP 服务器块,因此使用其 RESTful 网络服务建立与 Matlab 的实时 HTTP 连接非常简单:https ://de.mathworks.com/help/ matlab/ref/webread.html
此处显示了有关如何从服务器转换 JSON 文本的其他信息: https ://de.mathworks.com/help/compiler_sdk/mps_dev_test/mps.json.decoderesponse.html?searchHighlight=json&s_tid=srchtitle
最后,这里显示了如何发送和接收 HTTP 消息:
https://de.mathworks.com/help/matlab/ref/matlab.net.http.requestmessage.send.html
关于我们的数据结构和命令集的所有需要的文档都可以在下面找到:
https://v6-forum.aaronia.de/forum/topic/rtsa-suite-pro-http-streaming/
对于第一次实施测试,您可能希望使用提供 I/Q 和/或 SPECTRA 数据的I/Q 信号发生器块。

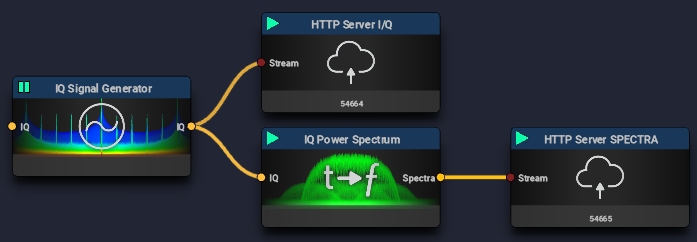

完整 Rx 和 Tx SPECTRAN V6 远程接口的简单设置如下所示(参见附件),包括 I/Q 和/或 SPECTRA 数据流。
请随时发布您的示例 Matlab 设置。
上传的文件:
更多matlab应用细节,请见:https://v6-forum.aaronia.de/forum/topic/how-to-use-the-spetran-v6-via-matlab/
